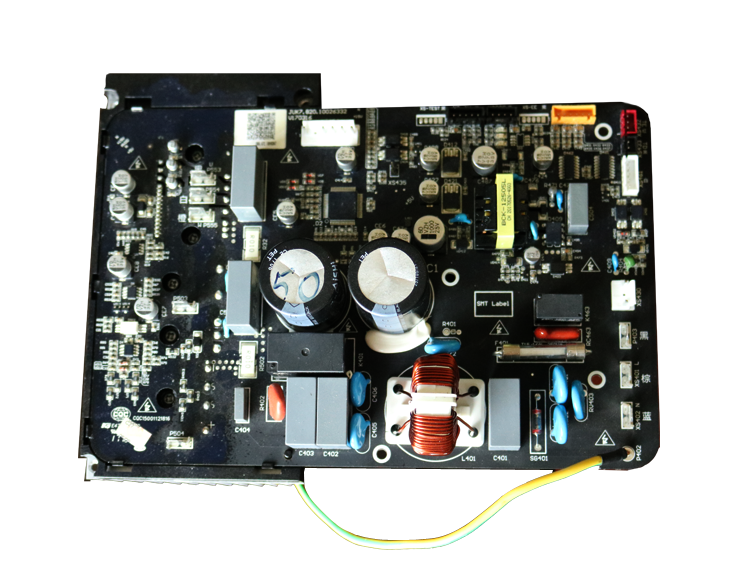

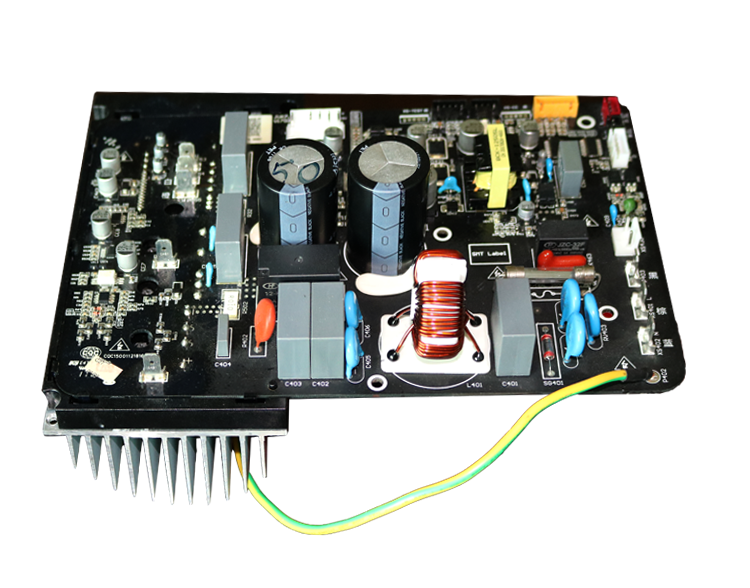

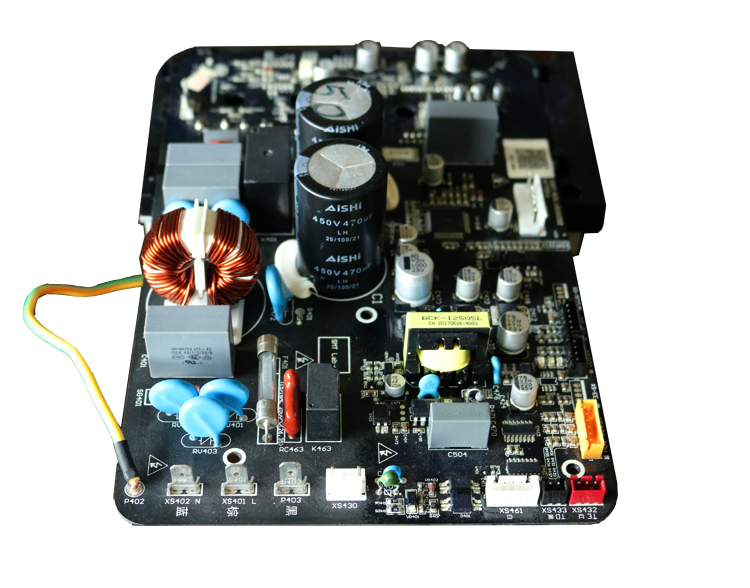

1.5HP DC inverter outdoor control board PCBA BAC04

BAC04 is designed for refrigeration type home applicance DC inverter system .It is adjusted for cooling capacity 8000-16000BTU  DC inverter air conditioner .

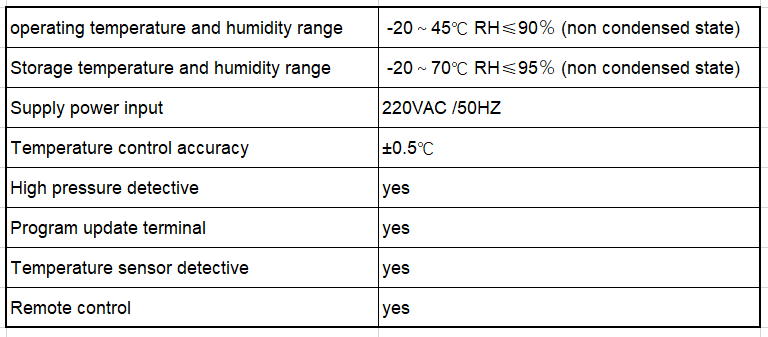

Specifications


Product Description:

BAC04 is designed for refrigeration type home applicance DC inverter system .

It is adjusted for cooling capacity 9000-18000BTU  DC inverter air conditioner .

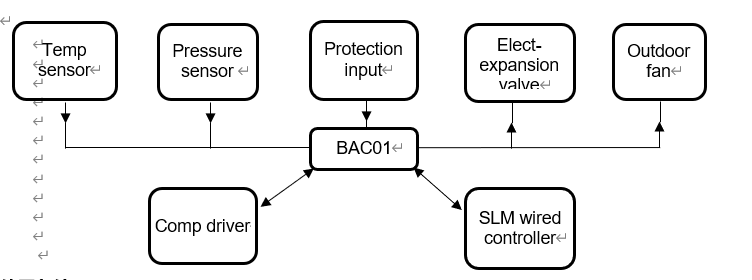

Control architecture for outdoor unit BAC04:

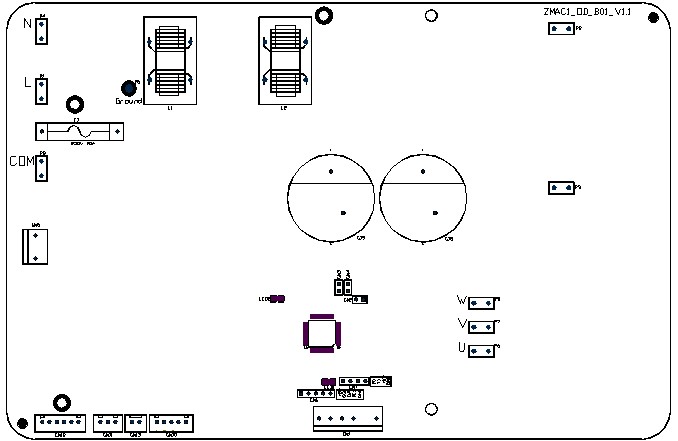

Circuit diagram for Hardware:




Functions:

1>Auto restart function;

2>Intelligent defrost function;

3>compressor high pressure protection;

4>flow  swith detective ;

5>Remote control;

6>Mode :cool/ heat/ventalation/dry/auto

7>Forced cooling or heating control

8>EEV control;

9> Sensors detective ;

10>Fault alarm

11>Modbus protocol
