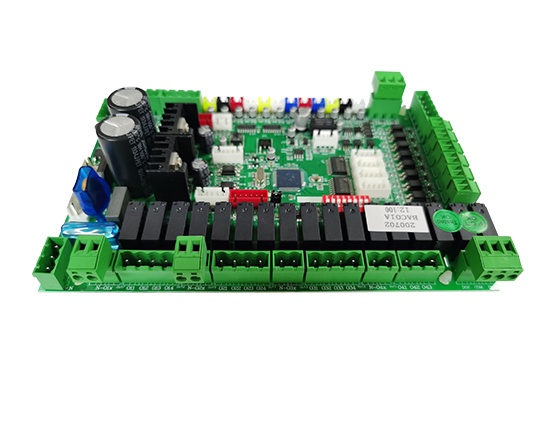

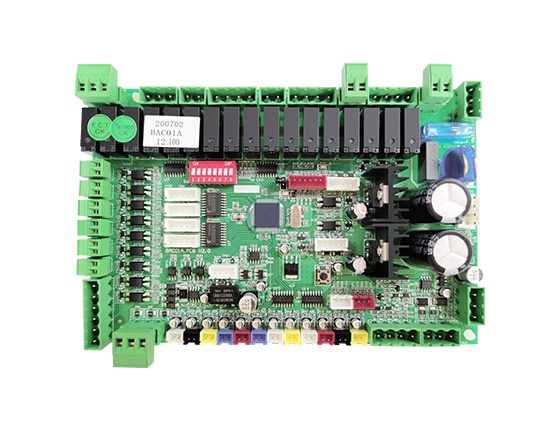

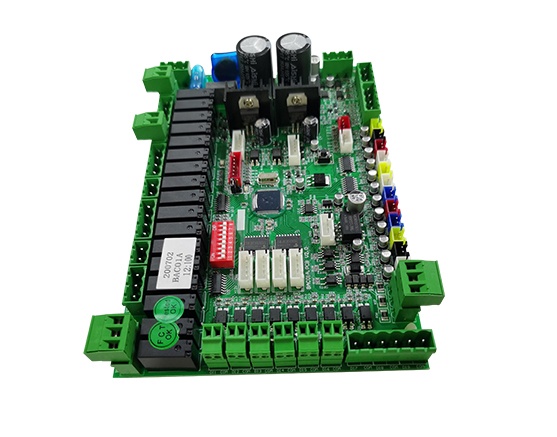

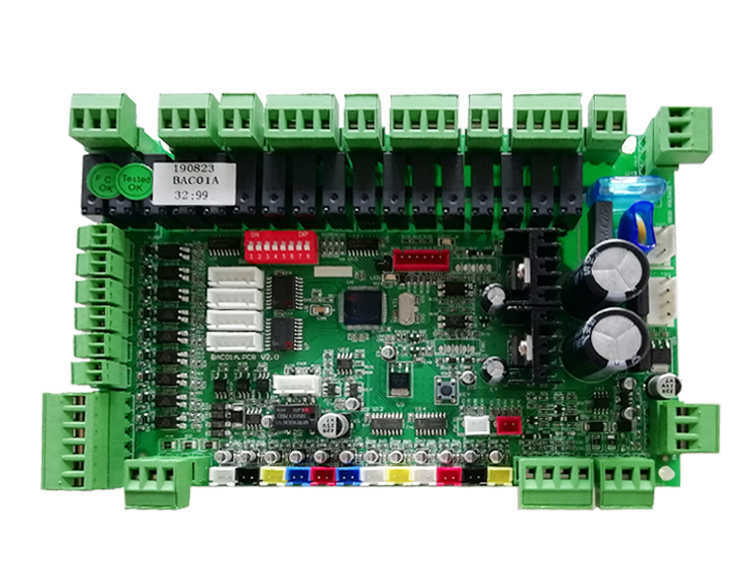

DC inverter outdoor unit PCBA circuit board assembly

DC inverter outdoor unit PCBA circuit board assembly outdoor unit PCBA circuit board assembly

BAC02 outdoor unit is designed for dual compressor system .

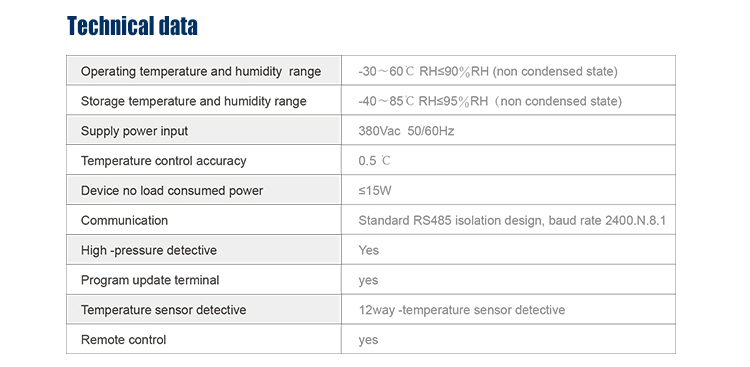

Specifications

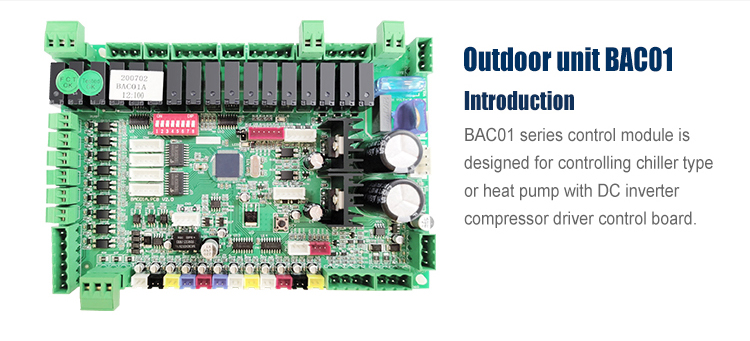

DC inverter outdoor unit control board introduction:

Bandary outdoor is designed with dual compressor system ,it can application in chiller with DC variable speed compressor control .

EVI function is optional .Bandary outdoor unit must be connected with the matching wired touch screen panel (FC263).

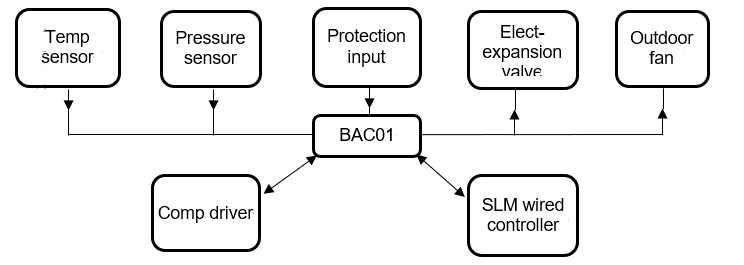

System Chart:

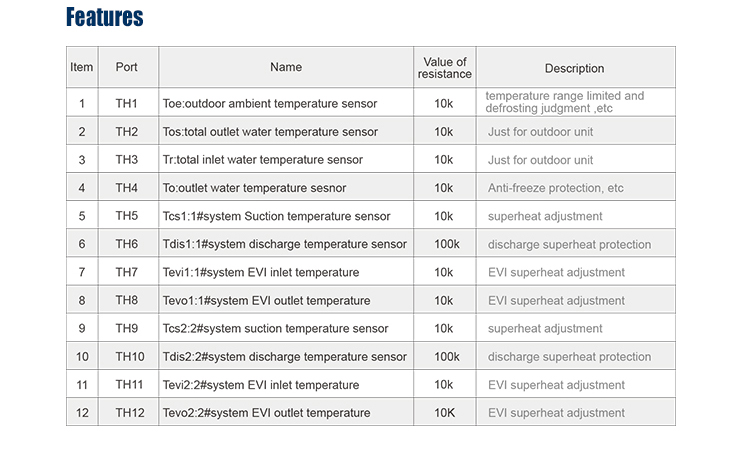

Features:

1>65kW, 100kW, 130kW(single module)

2. Multi-module networking control (up to 16 modules)

3. Compressor running time balance technology

4.intelligent defrosting technology, compressor oil, oil technology

5. The EXV is regulated by PD, and the stable control system can operate near the target value

6. Dual-speed fan control technology can improve the energy efficiency of part of the load

7. Perfect protection function ensures stable operation of the unit under various conditions

8. Size: 187 *124mm
